Installing Remote Server Administration Tools (RSAT) for Windows 10 1809 (including SCCM deployment)

Starting in Windows 10 1809 and continuing in future versions of Windows 10, the Remote Server Administration Tools are an optional feature that can be installed from within the OS, rather than you having to download them from Microsoft separately. This new approach fixes the issue that the tools would be uninstalled every time you install a Windows 10 feature update.

This does have a downside though, which is that Windows must go out to an update source to get the source files for RSAT (they are not included in the /Sources/sxs directory like the .NET 3 Framework source files are). This means you may have to allow clients to go out to Windows Update if they are installing RSAT!

The quick and dirty way to install all RSAT components is to open an administrative PowerShell window and use the command:

Get-WindowsCapability -Online | Where-Object {($_.State -notmatch 'Installed') -and ($_.Name -match 'RSAT')} | %{Add-WindowsCapability -Name $_.Name -Online

This will look for all features that have RSAT in the name and install them.

If you get an error 0800f0954 it means the source location could not be reached. This may be because the machine you’re attempting to install RSAT on doesn’t have internet access or is configured to go to a WSUS or SCCM server for updates. If it’s the latter, you can enable a GPO which allows Windows to go to Windows Update for optional component installations only (while still getting regular updates from WSUS or SCCM). This GPO is in:

Computer Configuration > Administrative Templates > System > Specify settings for optional component installation and component repair

Tick the Download repair content and optional features directly from Windows Update instead of Windows Server Update Services (WSUS) and click OK to set the GPO. You can test this with local group policy to make sure it fixes the issue before deploying it to everyone!

Each of the RSAT components can also be installed individually if you don’t wish to install all of them. The list of RSAT components can be found on this Microsoft Docs page. Use the following PowerShell command to install the component you want, changing the name to match the component you want to install (these are listed as capability names on the linked Microsoft Docs page):

Get-WindowsCapability -Online | Where-Object {($_.State -notmatch 'Installed') -and ($_.Name -match 'Rsat.BitLocker.Recovery.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}

You can install multiple components by simply duplicating the command and changing the name to match another component.

Uninstalling is a little more complicated as you cannot simply use the same catch-all PowerShell command to uninstall as you can to install. This is because some of the RSAT components have dependencies and if you try to uninstall them all the dependancies  will remain installed. To get around this, you can uninstall them in a specific order to ensure that all the dependant components are removed first.

I use the following order:

Get-WindowsCapability -Online | Where-Object {($_.State -notmatch 'Installed') -and ($_.Name -match 'Rsat.BitLocker.Recovery.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}

Get-WindowsCapability -Online | Where-Object {($_.State -notmatch 'Installed') -and ($_.Name -match 'Rsat.CertificateServices.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}

Get-WindowsCapability -Online | Where-Object {($_.State -notmatch 'Installed') -and ($_.Name -match 'Rsat.DHCP.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}

Get-WindowsCapability -Online | Where-Object {($_.State -notmatch 'Installed') -and ($_.Name -match 'Rsat.Dns.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}

Get-WindowsCapability -Online | Where-Object {($_.State -notmatch 'Installed') -and ($_.Name -match 'Rsat.FailoverCluster.Management.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}

Get-WindowsCapability -Online | Where-Object {($_.State -notmatch 'Installed') -and ($_.Name -match 'Rsat.FileServices.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}

Get-WindowsCapability -Online | Where-Object {($_.State -notmatch 'Installed') -and ($_.Name -match 'Rsat.IPAM.Client.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}

Get-WindowsCapability -Online | Where-Object {($_.State -notmatch 'Installed') -and ($_.Name -match 'Rsat.LLDP.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}

Get-WindowsCapability -Online | Where-Object {($_.State -notmatch 'Installed') -and ($_.Name -match 'Rsat.NetworkController.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}

Get-WindowsCapability -Online | Where-Object {($_.State -notmatch 'Installed') -and ($_.Name -match 'Rsat.NetworkLoadBalancing.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}

Get-WindowsCapability -Online | Where-Object {($_.State -notmatch 'Installed') -and ($_.Name -match 'Rsat.RemoteAccess.Management.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}

Get-WindowsCapability -Online | Where-Object {($_.State -notmatch 'Installed') -and ($_.Name -match 'Rsat.RemoteDesktop.Services.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}

Get-WindowsCapability -Online | Where-Object {($_.State -notmatch 'Installed') -and ($_.Name -match 'Rsat.Shielded.VM.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}

Get-WindowsCapability -Online | Where-Object {($_.State -notmatch 'Installed') -and ($_.Name -match 'Rsat.StorageMigrationService.Management.Tools')} | %{Remove-WindowsCapability -Name $_.Name -Online}

Get-WindowsCapability -Online | Where-Object {($_.State -notmatch 'Installed') -and ($_.Name -match 'Rsat.StorageReplica.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}

Get-WindowsCapability -Online | Where-Object {($_.State -notmatch 'Installed') -and ($_.Name -match 'Rsat.SystemInsights.Management.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}

Get-WindowsCapability -Online | Where-Object {($_.State -notmatch 'Installed') -and ($_.Name -match 'Rsat.VolumeActivation.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}

Get-WindowsCapability -Online | Where-Object {($_.State -notmatch 'Installed') -and ($_.Name -match 'Rsat.WSUS.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}

Get-WindowsCapability -Online | Where-Object {($_.State -notmatch 'Installed') -and ($_.Name -match 'Rsat.ActiveDirectory.DS-LDS.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}

Get-WindowsCapability -Online | Where-Object {($_.State -notmatch 'Installed') -and ($_.Name -match 'Rsat.GroupPolicy.Management.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}

Get-WindowsCapability -Online | Where-Object {($_.State -notmatch 'Installed') -and ($_.Name -match 'Rsat.ServerManager.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}

Making sure that the last three are Rsat.ActiveDirectory.DS-LDS.Tools~~~~0.0.1.0, Rsat.GroupPolicy.Management.Tools~~~~0.0.1.0 and Rsat.ServerManager.Tools~~~~0.0.1.0 seems to fix issues with dependant components.

Creating an SCCM application to deploy RSAT

To create an application in SCCM you will need three things: An install command, an uninstall command and a detection method. To cover the install and uninstall command, let’s create a PowerShell script with an install and uninstall function that can be called from the command line. The following PowerShell script is used to install and uninstall all RSAT components; if you want to pick and chose the ones you install or uninstall, modify it accordingly.

## Install all RSAT components
Function InstallRSAT {
    Get-WindowsCapability -Online | Where-Object {($_.State -notmatch 'Installed') -and ($_.Name -match 'RSAT')} | %{Add-WindowsCapability -Name $_.Name -Online}
}

## Uninstall each RSAT component so that no dependancies are left behind
Function UninstallRSAT {
    Get-WindowsCapability -Online | Where-Object {($_.State -match 'Installed') -and ($_.Name -match 'Rsat.BitLocker.Recovery.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}
    Get-WindowsCapability -Online | Where-Object {($_.State -match 'Installed') -and ($_.Name -match 'Rsat.CertificateServices.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}
    Get-WindowsCapability -Online | Where-Object {($_.State -match 'Installed') -and ($_.Name -match 'Rsat.DHCP.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}
    Get-WindowsCapability -Online | Where-Object {($_.State -match 'Installed') -and ($_.Name -match 'Rsat.Dns.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}
    Get-WindowsCapability -Online | Where-Object {($_.State -match 'Installed') -and ($_.Name -match 'Rsat.FailoverCluster.Management.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}
    Get-WindowsCapability -Online | Where-Object {($_.State -match 'Installed') -and ($_.Name -match 'Rsat.FileServices.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}
    Get-WindowsCapability -Online | Where-Object {($_.State -match 'Installed') -and ($_.Name -match 'Rsat.IPAM.Client.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}
    Get-WindowsCapability -Online | Where-Object {($_.State -match 'Installed') -and ($_.Name -match 'Rsat.LLDP.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}
    Get-WindowsCapability -Online | Where-Object {($_.State -match 'Installed') -and ($_.Name -match 'Rsat.NetworkController.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}
    Get-WindowsCapability -Online | Where-Object {($_.State -match 'Installed') -and ($_.Name -match 'Rsat.NetworkLoadBalancing.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}
    Get-WindowsCapability -Online | Where-Object {($_.State -match 'Installed') -and ($_.Name -match 'Rsat.RemoteAccess.Management.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}
    Get-WindowsCapability -Online | Where-Object {($_.State -match 'Installed') -and ($_.Name -match 'Rsat.RemoteDesktop.Services.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}
    Get-WindowsCapability -Online | Where-Object {($_.State -match 'Installed') -and ($_.Name -match 'Rsat.Shielded.VM.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}
    Get-WindowsCapability -Online | Where-Object {($_.State -match 'Installed') -and ($_.Name -match 'Rsat.StorageMigrationService.Management.Tools')} | %{Remove-WindowsCapability -Name $_.Name -Online}
    Get-WindowsCapability -Online | Where-Object {($_.State -match 'Installed') -and ($_.Name -match 'Rsat.StorageReplica.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}
    Get-WindowsCapability -Online | Where-Object {($_.State -match 'Installed') -and ($_.Name -match 'Rsat.SystemInsights.Management.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}
    Get-WindowsCapability -Online | Where-Object {($_.State -match 'Installed') -and ($_.Name -match 'Rsat.VolumeActivation.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}
    Get-WindowsCapability -Online | Where-Object {($_.State -match 'Installed') -and ($_.Name -match 'Rsat.WSUS.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}
    Get-WindowsCapability -Online | Where-Object {($_.State -match 'Installed') -and ($_.Name -match 'Rsat.ActiveDirectory.DS-LDS.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}
    Get-WindowsCapability -Online | Where-Object {($_.State -match 'Installed') -and ($_.Name -match 'Rsat.GroupPolicy.Management.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}
    Get-WindowsCapability -Online | Where-Object {($_.State -match 'Installed') -and ($_.Name -match 'Rsat.ServerManager.Tools~~~~0.0.1.0')} | %{Remove-WindowsCapability -Name $_.Name -Online}
}

## Get the parameter passed to the script
$DeploymentType=$args[0]

## Run the install or uninstall function
if ($DeploymentType -eq "Uninstall") {
    UninstallRSAT
}

else {
    InstallRSAT
}

Copy that script and save it as Install-RSAT.ps1. Create your application in SCCM and go through the wizard, giving it a name, publisher and version. The source will be the location where you saved Install-RSAT.ps1. When you get to the install and uninstall commands in the wizard, you can use the following commands:

To install:
powershell.exe -ExecutionPolicy Bypass -File .\Install-RSAT.ps1 -DeploymentType Install

To uninstall:
powershell.exe -ExecutionPolicy Bypass -File .\Install-RSAT.ps1 -DeploymentType Uninstall

Next up is the detection method. For this, you will need to use a PowerShell detection method. The PowerShell will simply check that the RSAT optional components have their install state set to Installed:

$installed = Get-WindowsCapability -Online | where name -like RSAT* | where state -like Installed | select name
if ($installed) {
    return $true
}

That should be all you need! Deploy that to a Windows 10 1809 device and the user should be able to install RSAT from Software Center… as long as their device can go online to reach the source files.

Download Window 10 Enterprise 1809 with the Media Creation Tool (including en-GB and other language versions)

The October 2018 release of Windows 10 has just dropped and is now availabe to download using the Media Creation Tool. Using the GUI you can download the consumer ISO which contains the Home, Professional and Education SKUs of Windows 10.

If you want to download the Enterprise version of Windows 10, but don’t have access to Microsoft VLSC or Action Pack subscriptions, it is possible to download it using the Media Creation Tool if you know the right command line switches.

To download Windows 10 Enterprise 1809 using the Media Creation Tool, log in with a local administrator account (for some reason it isn’t good enough to  run the tool using Run as administrator, you actually do have to be logged in as an administrator) and download the tool. Open a CMD prompt and change directory to the directory you saved the Media Creation Tool in, and enter the following command:

MediaCreationTool1809.exe /Eula Accept /Retail /MediaArch x64 /MediaEdition Enterprise

When you’re prompted for a product key, you can use the Windows 10 Enterprise KMS client key from this site on Microsoft Docs.

This will download an ISO that contains the various Enterprise SKUs (Enterprise, Enterprise N,  Education, Education N, Professional and Professional N) with en-US installed and set to default. If you’d prefer to get en-GB, use the following command:

MediaCreationTool1809.exe /Eula Accept /Retail /MediaLangCode en-GB /MediaArch x64 /MediaEdition Enterprise

This will download an ISO containing the same SKUs as above, but with en-GB installed and set to default.

As far as I can tell, this works for any of the language pack region tags listed on this site. So for example, to download Windows 10 Enterprise 1809 with French installed and set to the default language, you can use this command:

MediaCreationTool1809.exe /Eula Accept /Retail /MediaLangCode fr-FR /MediaArch x64 /MediaEdition Enterprise

If you want to download the 32-bit version of Windows 10 Enterprise instead, you should change /MediaArch to x86.

When you have downloaded the ISO you may unpack it to find that the it does not contain an install.wim, but instead contains install.esd in the sources directory. Depending on what you are doing, you may need the .wim file (for example, if you’re planning to use it with SCCM). Thankfully obtaining a .wim file from the .esd is quite straightforward using DISM.

Open a CMD prompt and use the following command (changing the path for /WimFile to match where your install.esd file is):

dism.exe /Get-WimInfo /WimFile:C:\Temp\Windows10_1809\sources\install.esd

This will list each of the SKUs in the install.esd file. Make a note of the index of the SKU you want (in my case, I want the Enterprise SKU which is index 3).

DISM Get-WimInfo

Now use the following command to create a install.wim file which contains the SKU you want:

dism.exe /Export-Image /SourceImageFile:C:\Temp\Windows10_1809\sources\install.esd /SourceIndex:3 /DestinationImageFile:C:\Temp\Windows10_1809\sources\install.wim /Compress:max /CheckIntegrity

Make sure the path for /SourceImageFile and /DestinationImageFile are correct for you and change the /SourceIndex to match the index you noted earlier.

DISM Convert ESD

Once that is done you can delete the install.esd file if you want, to save space.

This process also works with earlier versions of Windows 10.

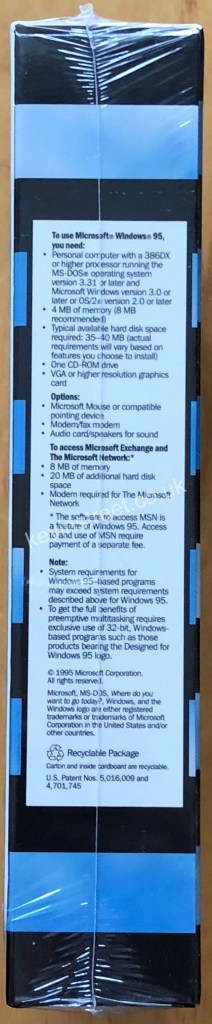

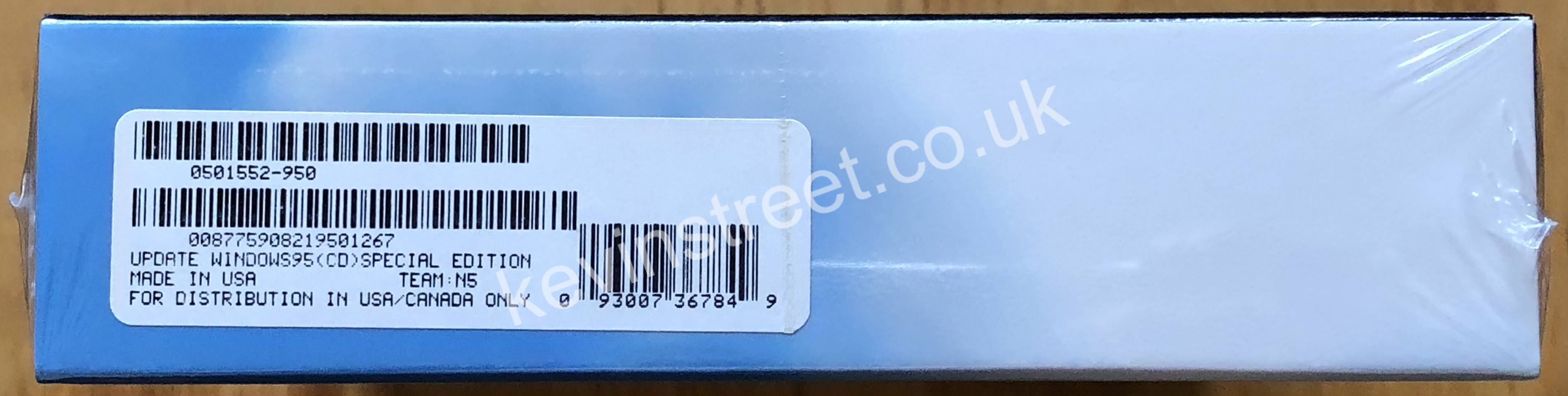

Windows 95 Special Edition

On August 24th 1995 Microsoft hosted a Windows 95 launch event at their campus in Redmond, Washington. At this event journalists and other attendees were gifted a copy of Windows 95 in a special commemorative box: Windows 95 Special Edition.

IMG_8300

Only 3,000 copies where handed out making this a fairly rare item to have (especially now, 22 years later).

The inside cover opens up and inside the following text can be found:

Screen Shot 2017-11-28 at 18.38.34

In the box you get a CD copy of Windows 95 – upgrade! Apparently Microsoft couldn’t bring themselves to give away free copies with a full license. You also get the owners manual, a leaflet introducing you to The Microsoft Network and a little Launch95: Introducing the world of Windows 95 insert.

And that’s it! The copy of Windows 95 is no different to the version you could buy in the shops, so the only thing about that this is special is the box.

Windows 7 Party Pack & Windows 7 Signature Edition

On October 22nd 2009 Microsoft launched Windows 7 and one of their ideas to promote it was to ask some of their, uh, more loyal fans to host a launch party. People signed up and those who where selected received a party pack in the mail. I happen to have one of those party packs, so let’s have a look at what you got for your rad Windows party:

  • A deck of playing cards
  • A puzzle
  • A poster
  • Ten gift bags
  • A table top piece
  • A pack of napkins
  • A copy of Windows 7 Ultimate (dubbed Signature Edition as it has a print of Steve Ballmer’s signature on it)

It seems all of the items were designed to show off some of the wacky strange creatures art that was included as wallpapers in Windows 7.

Personally I think the poster and gift bags are really quite nice! People in the US who received this pack also got some balloons, some streamers and some coupons and offers for other products like Kaspersky AV and Zune.

Of course the most exciting reason to receive this party pack was the free copy of Windows 7 Ultimate you got which comes in a nice sleeve with Steve Ballmer’s signature printed on it.

Inside was a full retail edition of Windows 7 Ultimate and both 32bit and 64bit installer disks. There’s nothing special about the version of Windows, it’s just plain old Windows 7 Ultimate. The only special thing is the sleeve it comes in.

Migrating your Microsoft PKI infrastructure to Windows Server 2016 (Part 2)

Migrating your Microsoft PKI infrastructure to Windows Server 2016 (Part 1)
Migrating your Microsoft PKI infrastructure to Windows Server 2016 (Part 2)

In the second part of this guide I will be migrating my online issuing CA to Windows Server 2016. As before this guide is written as a guide to upgrade from a Windows Server 2012 R2 CA to a Windows Server 2016 CA, however it is equally valid for moving a CA from any older version of Windows server to Windows Server 2016.

The majority of the steps in this guide are identical to the steps for the offline root CA, however there are a few differences as this is a domain joined system and at the end of the guide you will need to re-register any certificate templates you have.

Preparation

Start by building your new Windows Server 2016 server. I recommend again that you give it the same name as your current issuing CA, although it is possible to change it if you are willing to modify some registry keys later on in the process. If you do give this server the same name do not join it to the domain yet. This will be done later in the guide once the existing issuing CA has been removed from the domain. You should also patch the new server with the latest Microsoft patches at this time.

Migration – Backing up your existing issuing CA server

The first step is to back up the CA using the command certutil -backup C:\SubCABackup KeepLog. If you do not care about keeping the logs then you can omit the KeepLog part and instead the logs will be truncated.

You will need to enter a password, remember it and make it complex as this backup contains your issuing CA private key.

backupIssuingCA

The next thing to backup is the CA configuration, which is stored in the registry in the following location: HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\CertSvc. Back it up by typing reg export "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\CertSvc" C:\SubCABackup\CertSvcRegBackup.reg

backupIssuingCAReg

You now also need to make a record of what certificate templates you have created as these will need to be re-registered on the new CA. The easiest way to do this is to run the command Certutil -catemplates > "C:\SubCABackup\Catemplates.txt". This pipes the output to a file called Catemplates.txt which you can open later to see the names of the templates.

It is also worth backing up your CAPolicy.inf file which you can do easily enough by copying it into the backup folder by typing copy C:\Windows\CAPolicy.inf C:\SubCABackup.

Once you have done the work to backup your existing issuing CA it is time to uninstall the CA role. Before doing this run Get-WindowsFeature in Powershell and have a look at what additional CA features you currently have installed (for example you may have the Web Enrolment service and/or Online Responder roles installed). Make a note of these so that you know what features to install on the new issuing CA server.

windowsFeatures

To uninstall the certificate authority role use the Powershell command Remove-WindowsFeature Adcs-Cert-Authority and press enter. If you did have any additional CA roles installed you may need to remove those first; in my case I had to remove the Web Enrollment service (this was done by running Uninstall-AdcsWebEnrollment).

You will need to restart the server to complete the role uninstall.

It is now important that you copy the SubCABackup folder to your new issuing CA as the next step is to remove the existing issuing CA from the domain and power it down.

To remove the old issuing CA from the domain using Powershell type Remove-Computer HOSTNAME replacing HOSTNAME with the name of your issuing CA. Restart the server to complete the domain removal and then power down the old issuing CA.

Load Active Directory Users and Computer from a management workstation and delete the computer account for the old issuing CA.

Migration – Configuring your new issuing CA and restoring from the backup

Power on your new issuing CA and join it to the domain. You can do this from Powershell by typing in Add-Computer –DomainName yourdomain.com -Credential YOURDOMAIN\Administrator replacing the domain with your domain and the admin account with your admin account. Restart the server to complete the domain join.

Once the reboot has completed you must install the CA role. Do this using Powershell by typing in Add-WindowsFeature ADCS-Cert-Authority and pressing enter. As with the root CA this now needs to be configured using the backup from the old issuing CA, which you do with the following Powershell command:

Install-AdcsCertificationAuthority -CAType EnterpriseSubordinateCA -CertFile "C:\SubCABackup\LaptopPoc Sub CA.p12" -CertFilePassword (Read-Host "Enter password" -AsSecureString)

Replace the value after -CertFile with the path and name of the .p12 file from your issuing CA backup. When you press enter you will be prompted for the password you used to back up your original issuing CA.

If this step is successful you will receive ErrorID 0 as your return code.

Next you need to restore the database and logs. Before you do this the CA service must be stopped. Do that by typing in net stop certsvc and pressing enter. Once it has stopped restore the database and logs using the command certutil -f -restore C:\SubCABackup. The -f forces an overwrite of the data that was configured in the barebones CA setup. Once again you must enter the password you used to backup your original issuing CA.

Before starting the CA service you must import the registry configuration. If you opted to change the name of your issuing CA server you need to go through the C:\SubCABackup\CertSvcRegBackup.reg file and replace and reference to the old server name with your new server name. Once this is done you can import the configuration by typing reg import "C:\SubCABackup\CertSvcRegBackup.reg".

Finish up the restoration process by copying the CAPolicy.inf file back into the Windows directory by using the command copy C:\SubCABackup\CAPolicy.inf C:\Windows

One final thing

There may be one other thing you need to consider before you can start your new issuing CA and that is the location of the web CRL. This is a website that is likely hosted inside your network that contains an up to date certificate revocation list which your issuing CA needs to have access to before it will start. This may not be a problem for you at all if your web CRL is hosted on an separate web server that you did not touch during this migration. However, if like me your web CRL is hosted on your issuing CA, this will have been lost when you decommissioned your previous issuing CA.

To resolve this you will need to install IIS on your new issuing CA and configure a new site to host your CRL. The URL to the CRL must match the previously configured CRL location, so if it used to be accessible via http://PKI.yourdomain.com then it must still be accessible there now. You can find the URL for your CRL by looking at any certificate issued by your CA, going to the Details pane and looking at the CRL Distribution Points field.

Restoring your certificate templates

With everything else done you can now start your new issuing CA by typing in net start certsrv. Now you will need to re-register each of the certificate templates you had on your previous issuing CA. Open the Catemplates.txt file you saved by typing notepad Catemplates.txt and use it as a reference for the names for each of your templates. You will need to run the following command for each one:

certutil -setcatemplates +TEMPLATENAME

Replace TEMPLATENAME with the name of your certificate template. Note that + before the template name.

restoreCATemplates

Do this for each of your templates. Once completed all of your templates will be available again and all issuing permissions will be retained.

That completes the process of migrating your issuing CA to a new server. If you have multiple issuing CA servers you will need to repeat this process for each of them. You may also need to reinstall any additional certificate service roles such as Web Enrollment1, which you can do either in Powershell or by using a management workstation with Server Manager. You should make sure you delete the C:\SubCABackup folder so that you don’t leave your issuing CA private key laying around.

1You may encounter error 0x80070057 when reinstalling the Web Enrollment role. If you do, take a look at this blog post: AD: Certification Authority Web Enrollment Configuration Failed 0x80070057 (WIN32: 87)

Migrating your Microsoft PKI infrastructure to Windows Server 2016 (Part 1)

Migrating your Microsoft PKI infrastructure to Windows Server 2016 (Part 1)
Migrating your Microsoft PKI infrastructure to Windows Server 2016 (Part 2)

As part of my efforts to upgrade my POC lab to Windows Server 2016 I got around to migrating my PKI infrastructure. This consists of an offline root CA and an online issuing CA. In Part 1 of this guide I will be migrating my offline root CA to Windows Server 2016.

This guide is written as a guide to upgrade from a Windows Server 2012 R2 CA to a Windows Server 2016 CA, however very little has changed since the Windows Server 2003 days and this guide is equally valid for moving a CA from any older version of Windows server to Windows Server 2016.

I am a big advocate of the core versions of Windows Server and in this guide I will be migrating from and to Windows Server core. A CA is a perfect example of a server that does not need the overhead of the GUI and additional services that comes with the full GUI edition of Windows Server and if you don’t already use core for your CA, this is a perfect opportunity to migrate to one!

Preparation

In preparation for the migration build your new Windows Server 2016 server. I recommend that you give it the same name as your current root CA server – it is possible to give it a different name however this will require changing registry keys later on in the migration process. Take this opportunity to patch it with the latest Microsoft patches!

Migration – Backing up your existing root CA server

The first step is to back up the CA using the command certutil -backup C:\RootCABackup KeepLog. Note that the KeepLog part is optional, however without it the backup will truncate the logs. I prefer to bring the whole lot across in case the logs are ever needed in the future for auditing purposes.

You will need to enter a password, remember it and make it complex. This backup contains your root CA private key, do not make it easy for an attacker to obtain.

certutilBackup

The next thing to backup is the CA configuration, which is stored in the registry in the following location: HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\CertSvc. Back it up by typing reg export "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\CertSvc" C:\RootCABackup\CertSvcRegBackup.reg

regBackup

Additionally it is worth backing up your CAPolicy.inf file which you can do easily enough by copying it into the backup folder, by typing copy C:\Windows\CAPolicy.inf C:\RootCABackup

copyPolicy

Finally, copy the RootCABackup folder to your new CA.

Migration – Configuring your new root CA and restoring from the backup

Log on to your new root CA server and start by installing the CA role. The easiest way to do this is with PowerShell, so type powershell into your administrative CMD prompt and enter the following command to install the CA role: Add-WindowsFeature ADCS-Cert-Authority

Now configure this new CA using the backup of the old CA. This can also be done with PowerShell using the following command:

Install-AdcsCertificationAuthority -CAType StandaloneRootCA -CertFile "C:\RootCABackup\LaptopPoc Root CA.p12" -CertFilePassword (Read-Host "Enter password" -AsSecureString)

Replace the value after -CertFile with the path and name of the .p12 file from your root CA backup. When you press enter you will be prompted for the password you used to back up your original root CA.

If this step is successful you will receive ErrorID 0 as your return code.

configureCA

This restores the root CA private key, however next you need to restore the database and logs. Before you do this the CA service must be stopped. Do that by typing in net stop certsvc and pressing enter. Once it has stopped restore the database and logs using the command certutil -f -restore C:\RootCABackup. The -f forces an overwrite of the data that was configured in the barebones CA setup. Once again you must enter the password you used to backup your original root CA.

certutilRestore

Do not start the certificate authority service just yet! Before doing that the registry settings from the previous root CA need to be restored. Do this by typing reg import "C:\RootCABackup\CertSvcRegBackup.reg"

Note: If you chose to change the name of your root CA server you will need to go through the values in this registry file and change any reference to the old server name to your new server name before importing it.

Finally copy the CAPolicy.inf file back into the Windows directory by using the command copy C:\RootCABackup\CAPolicy.inf C:\Windows

Now you can start the root CA by typing net start certsrv. The service should start with out any issues. To verify this you should log on to a management workstation and load the Certificate Authority MMC snap-in, connect to the new server and verify that your issued / revoked certificates are listed (as this is a root CA there should be very few issued certificates!)

Once you are satisfied that the new server is configured correctly and working, make sure that you delete the C:\RootCABackup folder. As previously mentioned, this contains your root CA private key, you do not want to leave that laying around!

Coming soon is Part 2, which will focus on migrating the issuing certificate authority. Thankfully the steps for this are very similar with only small differences due to it being a domain joined server.

Error 80070057 when attempting to update Windows Server 2012 R2

Once when I was updating some servers running the version of Windows Server 2012 R2 I encountered something odd; no patches appeared in Software Center or in the Windows Update panel, even though the server was several years out of date and definitely had applicable updates!

In WindowsUpdate.log I found the following error message repeating:

cidimage001

The fix for this is to manually download and install KB2919355, which is the April 2014 update rollup for Windows Server 2012 R2. After this has been installed and the server has restarted, re-run your updates scan and updates will show up in Windows Update or Software Center.
